METAL ADDITIVE EQUIPMENT
SP-series platforms and powder systems.
A connected platform spanning process development, medium-format production, large-format printing, multi-laser forming and closed powder handling.
01EQUIPMENT CAPABILITY OVERVIEW
Three connected layers, one production system.
The page is organized around selection, forming and production management so technical information stays connected to real manufacturing decisions.
Platform selection
The verified SP range spans compact development systems through large-format platforms. Selection is based on part envelope, material, accuracy, layer strategy and target output.
- SP101 to SP1200 platform range
- Build-envelope selection by part size and output target.

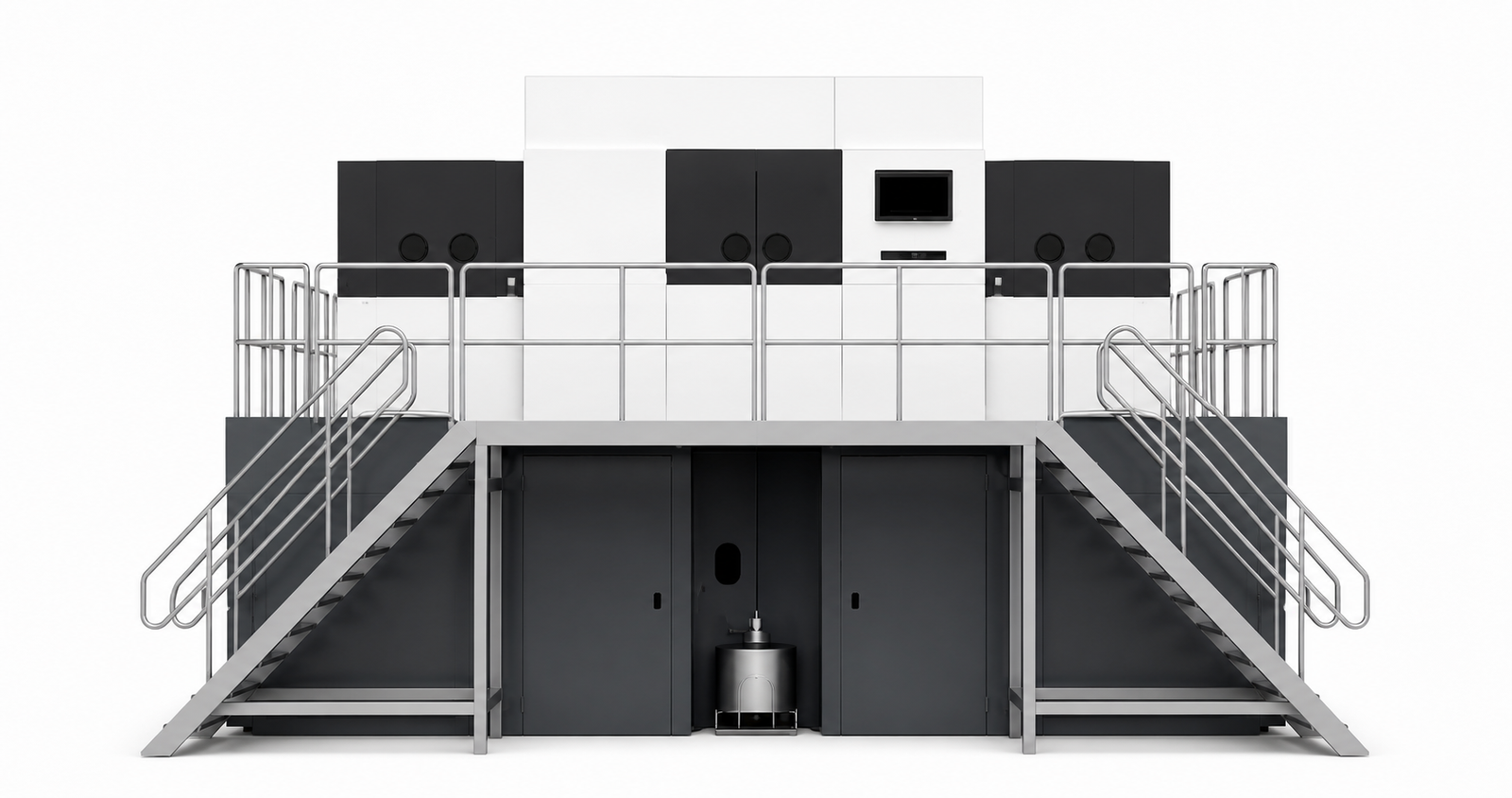

Verified build envelopes
Examples range from SP101 at Ø100 × 100 mm and SP261 at 250 × 250 × 300 mm to SP801 at 800 × 800 × 600 mm and SP1200 at 1,200 × 600 × 1,500 mm.
- Large-format build envelopes
- Platform dimensions support equipment selection and factory planning.

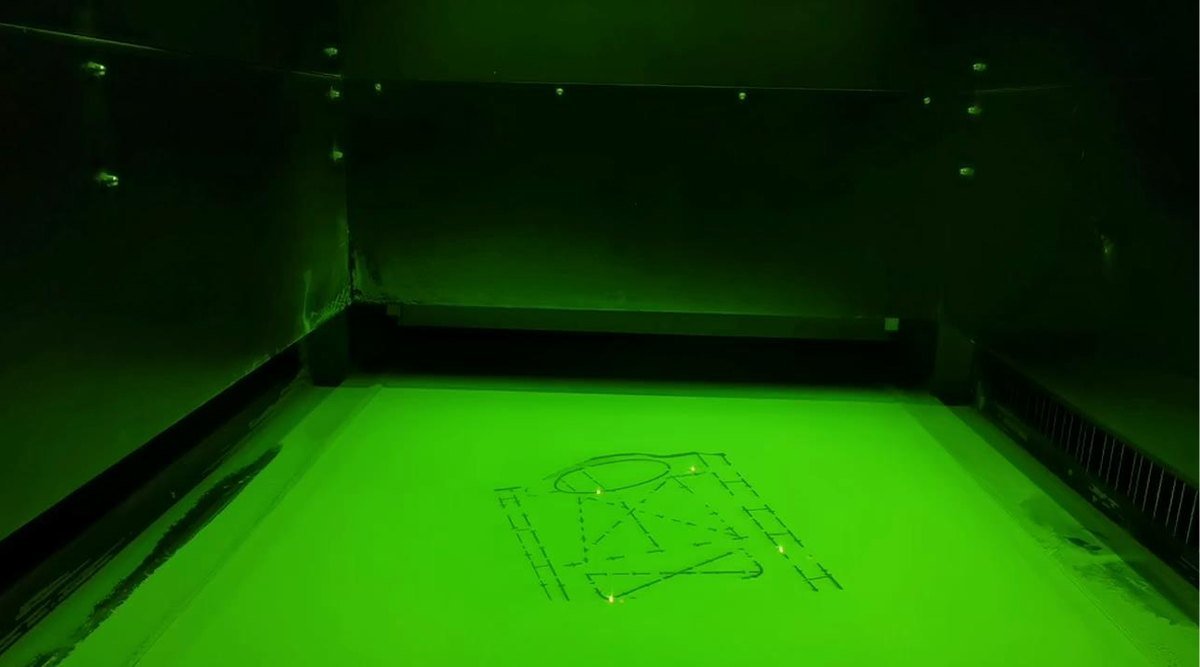

Multi-laser and process control
Scanning overlap calibration, bidirectional recoating, inert-gas management, filtration and automatic cleaning support productive and consistent large-area forming.
- Laser forming and process control
- Recoating, laser exposure and atmosphere control support consistent layer-by-layer forming.

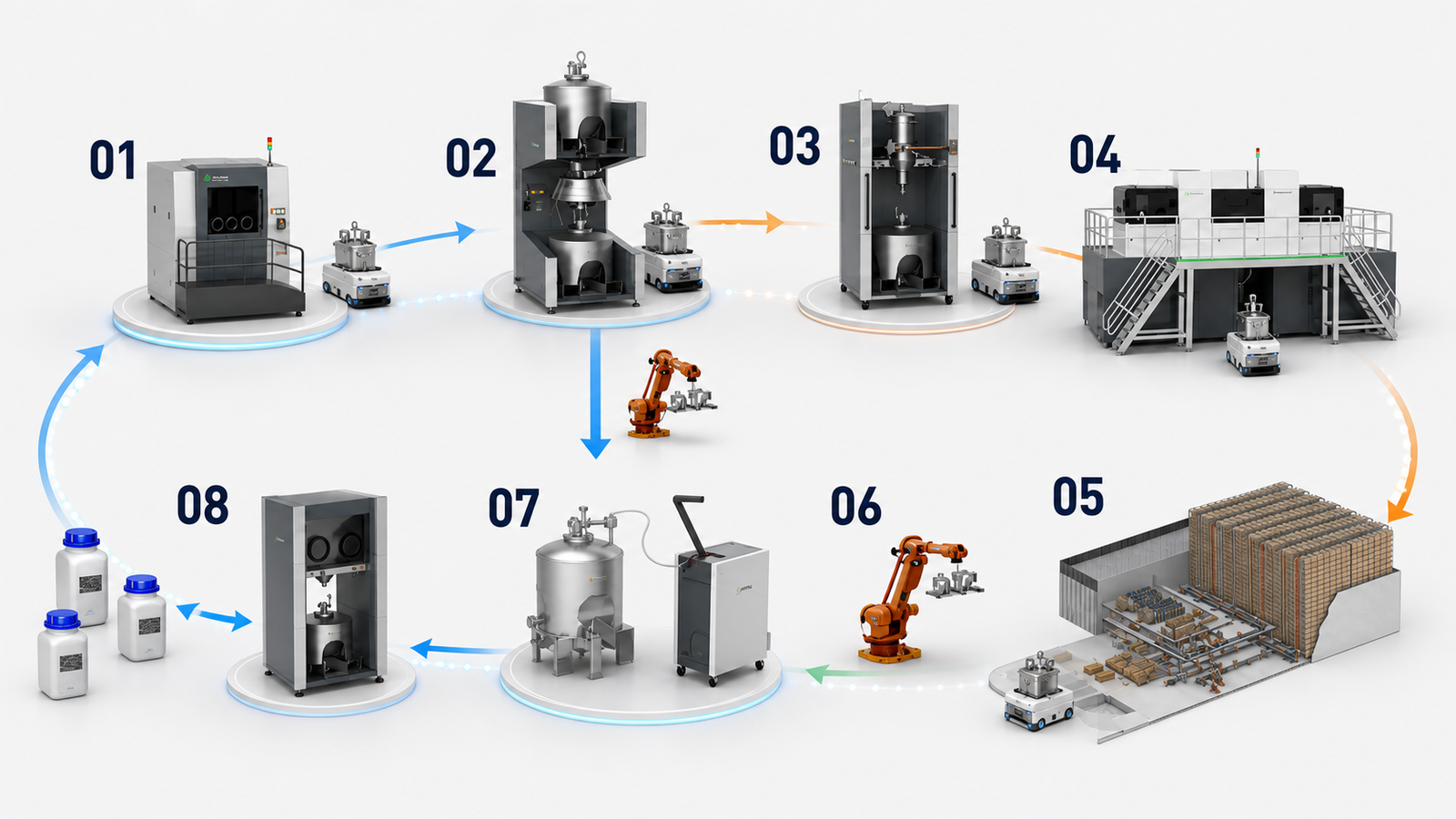

Closed powder workflow
Feeding, recovery, sieving, depowdering and storage can be linked through closed transfer, while MES records work orders, parameters and equipment status.
- Closed powder handling
- Feeding, recovery, sieving, cleaning and storage connect through a controlled powder route.
Information for evaluation
Please provide part dimensions, target material, annual output, accuracy and surface requirements, factory utilities, automation needs and any powder-safety constraints.
- Production integration
- The actual printing workshop supports coordinated review of utilities, automation, MES records and powder-safety requirements.
From powder preparation to verified parts.
Equipment selection is only one part of the solution. The route connects powder control, forming, recovery, heat treatment, finishing and inspection into a traceable production system.
Powder preparation
Material verification, drying and batch identification.
Sieving & feeding
Remove agglomerates and transfer powder into the controlled supply route.
Laser forming
Recoating, atmosphere control and laser parameters work together layer by layer.
Depowdering
Remove residual powder through controlled and, where applicable, closed handling.
Recovery & reuse
Recovered powder is sieved, recorded and assessed before reuse.
Heat treatment
Stress relief and heat-treatment routes are defined around material and part geometry.
Post-processing
Wire cutting, CNC finishing and surface treatment complete critical interfaces.
Inspection & traceability
Dimensions, density and quality records connect to the production lot and MES data.
